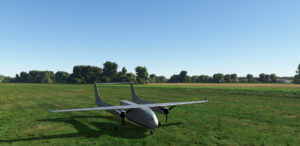

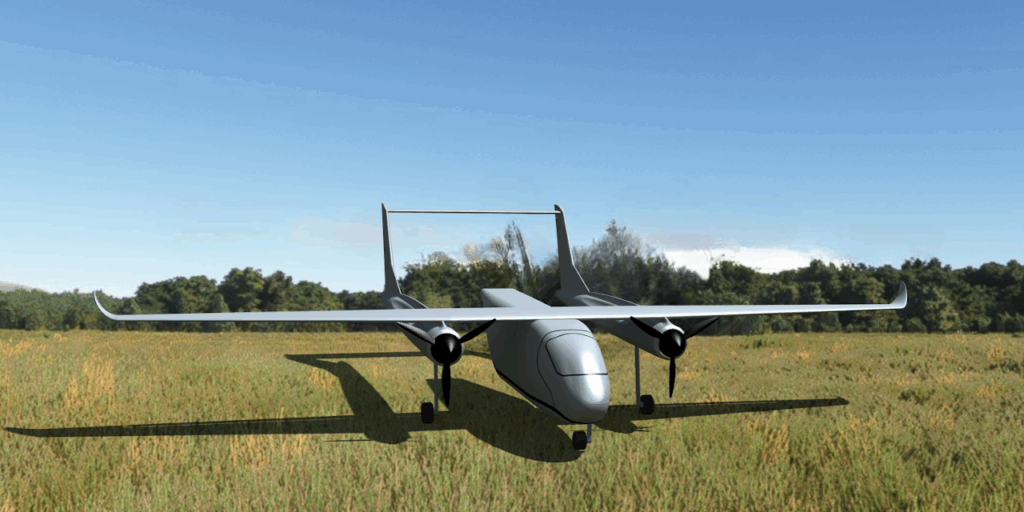

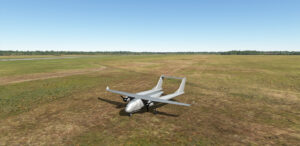

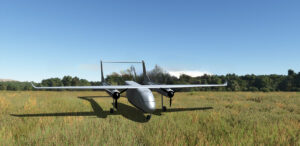

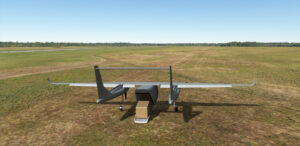

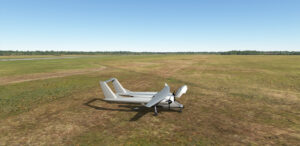

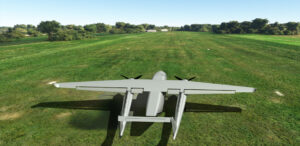

Hydrogen-Driven Range-Extended Aircraft
(being planned)
Contact us
General specifications
- Wingspan: 20 m
- Maximum take-off mass: 2t
- Empty mass: 1t
- Payload capacity: 1t
- Loading and unloading < 20 min.
- Mission change: logistics to firefighting… < 3h
- Take-Off Distance: < 250 m
- Propulsion: 2 electric motors, 475 kW each
- REX: H2/E-Fuel direct combustion system
Flight performance data
- Short take-off and landing distances
- Grass/Field Runway Capable
- Cruising speed: 170 knots (300 km/h)
- Range: 900–2.000 km
Possible applications
- Commercial: logistics, supply, telecommunications, surveillance …
- Disaster control: fire-fighting, supply, surveillance, rescue …
- Military use: supply, surveillance, telecommunications, rescue …
Technical components
- E-Axial motors
- SafeBatt2Fly battery storage
- SiC power electronics
- H2L hydrogen energy storage
- H2-REX
Some components are now in flight testing, at TR level 7-8.
